Price range: $6.71 through $7.45
226 in stock (can be backordered)
4 PIECE MINIMUM ORDER / CE Certification Document
Arduino Portena Battery 1000mAh
Additional Arduino Compatible Products: Nicla Vision Battery,Â
Arduino Portena Battery
Discount per Quantity
| Quantity | 1 | 2 - 5 | 6 - 10 | 11 - 15 | 16 - 35 | 35 + |
|---|---|---|---|---|---|---|
| Discount | 0% | 3% | 5% | 8% | 10% | 10% |
| Price | $7.45 | $7.23 | $7.08 | $6.85 | $6.71 | $6.71 |
226 in stock (can be backordered)

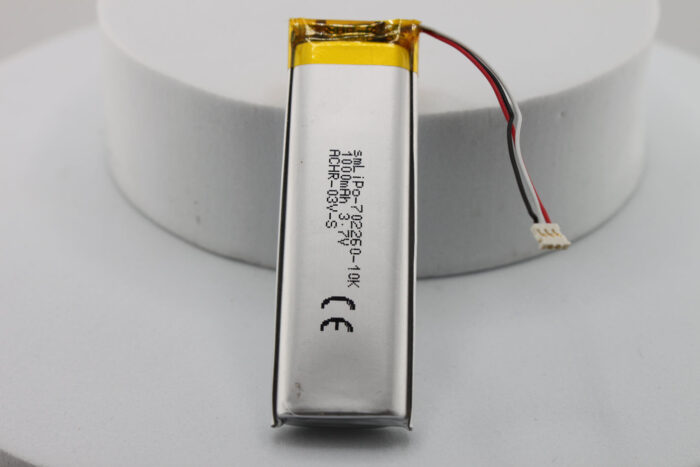

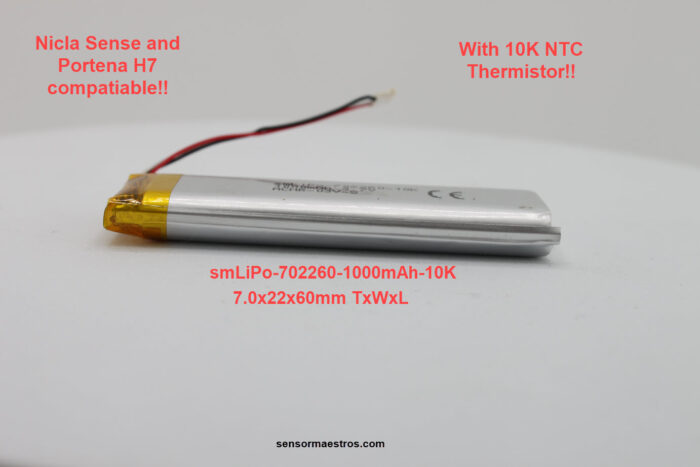

Arduino Portena Battery 1000mAh
Additional Arduino Compatible Products:Â Nicla Sense Battery, Arduino Nicla Vision Battery
Working on Arduino Portena H7, Arduino Nicla Vision or Arduino Nicla Sense projects and need a battery? Look no further we have a Arduino Portena Battery battery 1000mAh of capacity – smLiPo-702260-10K. Providing 1000mAh of capacity the smLiPo-702260-10K will give your projects plenty of battery life. You could just as well use this is battery for other embedded applications such as wireless sensors, battery operated cameras, robotics, etc.

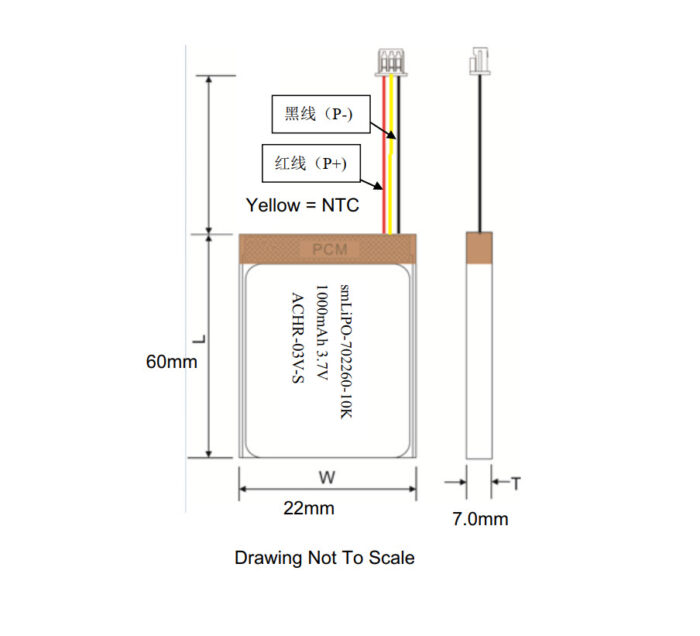

Sensor Maestros engineered the smLiPo-702260-10K with a 3-pin ACHR-03V-S female connector — the same connector found on the Arduino Nicla Sense, Arduino Nicla Vision, and Portenta series. Its mating male connector snaps securely into place at just 1.4mm in height, delivering an ultra-low-profile connection. The smLiPo-702260-10K features built-in UV/OV Protection Circuit Module (PCM), actively safeguarding the battery against Over-Voltage (OV) and Under-Voltage (UV) events. A built-in 10K NTC thermistor enables compatible battery chargers to monitor thermal conditions in real time.
Well if you are here you are likely working on some sort of Arduino project. With that being said we want to ensure to include some links to keep things all in a convenient location for you. We have provided several links below for your Arduino Portena H7, Arduino Nicla Vision, and Arduino Nicla Sense boards for your reference. As we mentioned earlier we designed this battery specifically for Arduino products that are utilizing the BM03B-ACHSS-GAN-TF. This connector mates like a marriage made in heaven with connector we provided for you on the smLiPo-702260-10K 1000mAh LiPo with 10K NTC.
Nicla Sense ME, Nicla Sense Vision Battery Connections
Useful Lithium Battery Links:
Lithium Discharge Characteristics
Battery Protection Circuits
Charging Lithium Batteries
Calculate Battery Life
| Weight | 0.02 kg |
|---|---|
| Dimensions | 60 × 22 × 38 mm |
